01
Geometry & dimensions
Exact runs, angles, radii, finished depths, and site conditions are translated into buildable countertop shapes.
CAD & digital planning
Precision begins before the first cut.
Our CAD team translates field measurements, plans, and project decisions into a clear fabrication roadmap—so every opening, edge, seam, and overhang is accounted for.
Start with your plans →
A professional result starts with a resolved plan.
Stone allows little room for improvisation once fabrication begins. CAD gives our team a shared technical record of the project, connecting what was measured in the field with what will be produced in our shop.
See the complete processA collaborative review
The final drawing is part of bringing your vision to life.

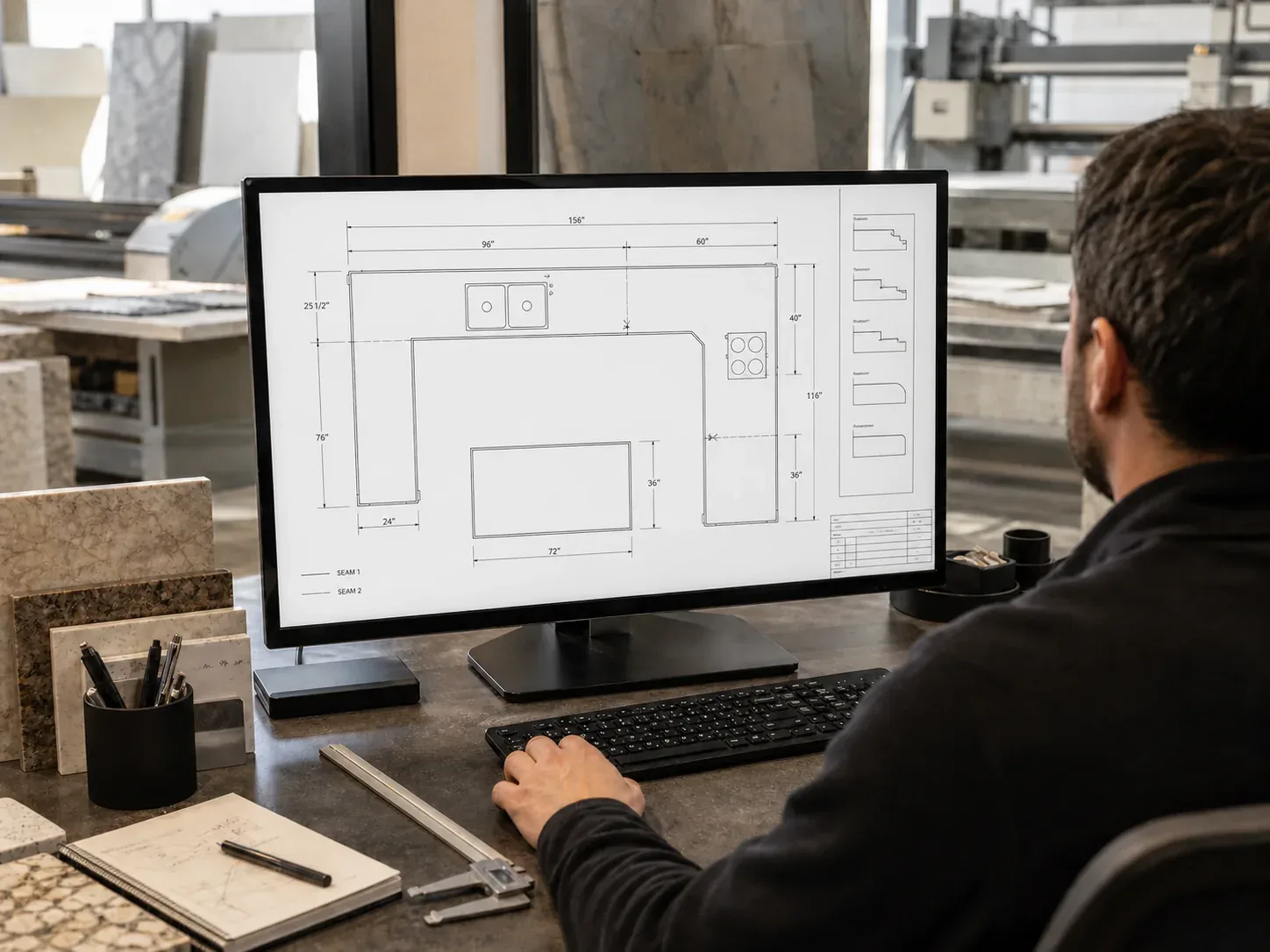

After we measure your space, our CAD team translates the agreed project details into a final template drawing. Reviewing it together is an important part of your Artelye experience: a chance to see how your choices come together, ask questions, and make sure we are achieving your vision before fabrication begins.
Take the time you need. Your Artelye representative is here to walk through the drawing with you, explain every detail, and coordinate any needed changes. We release the project to production only when you feel confident approving it.
01Measure

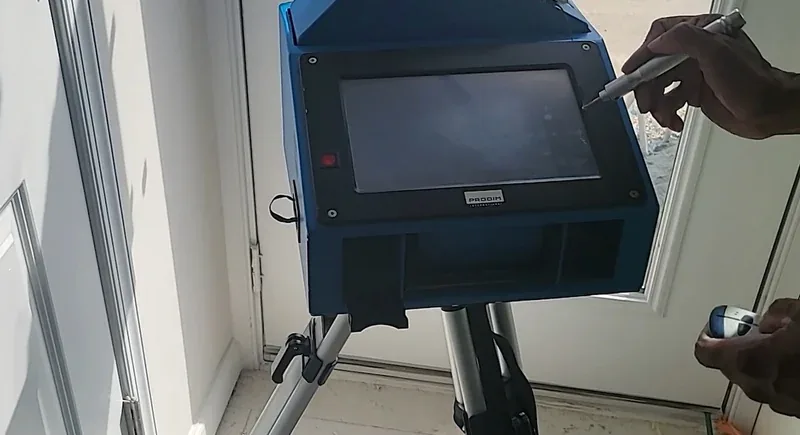

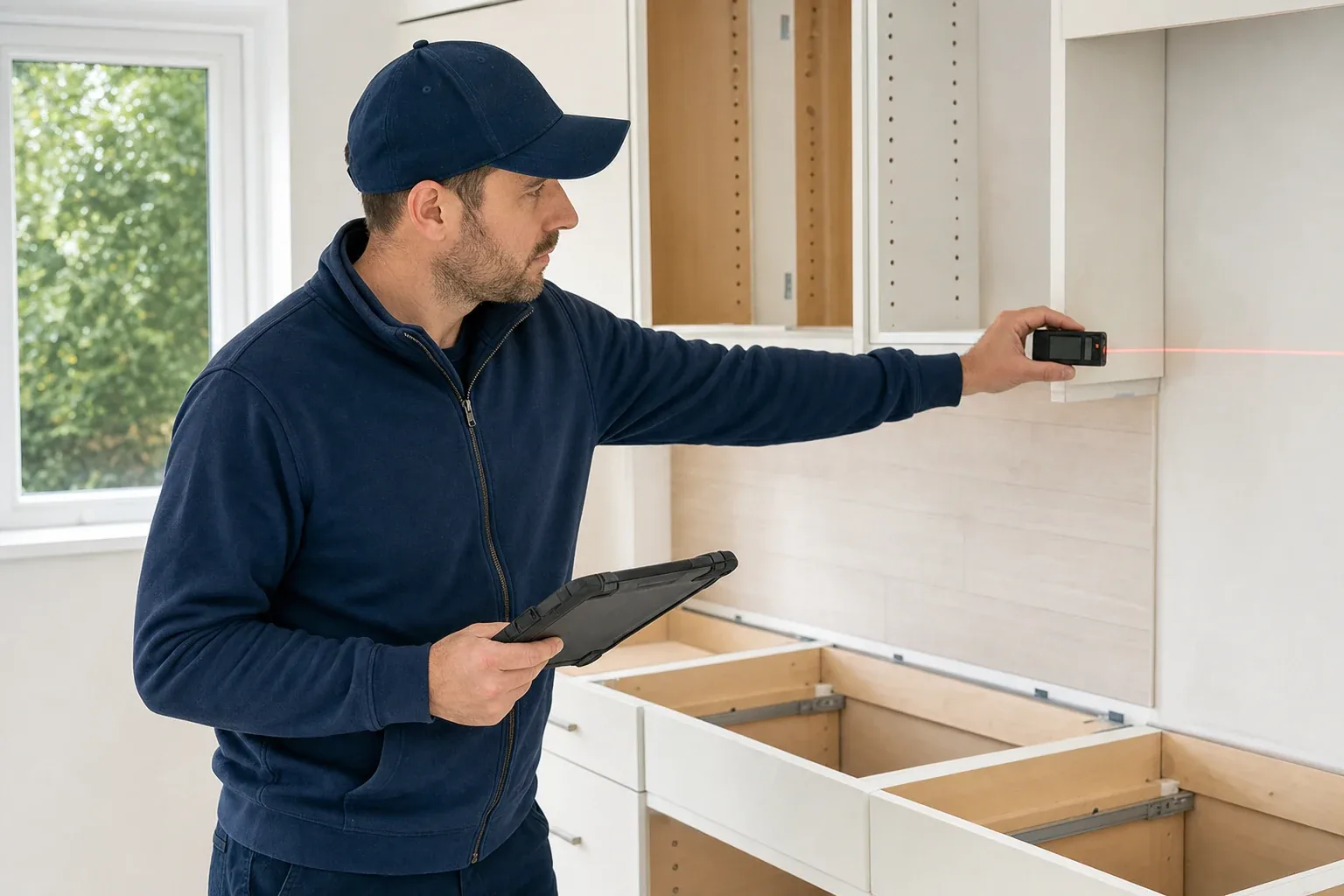

Field conditions become a precise digital record.
02Review
Every opening, edge, seam, and overhang is confirmed together.
03Release
The approved drawing guides fabrication and installation.
What we resolve
Every critical detail, made visible.
The drawing becomes a practical coordination tool for homeowners, designers, builders, field teams, and fabricators.
02

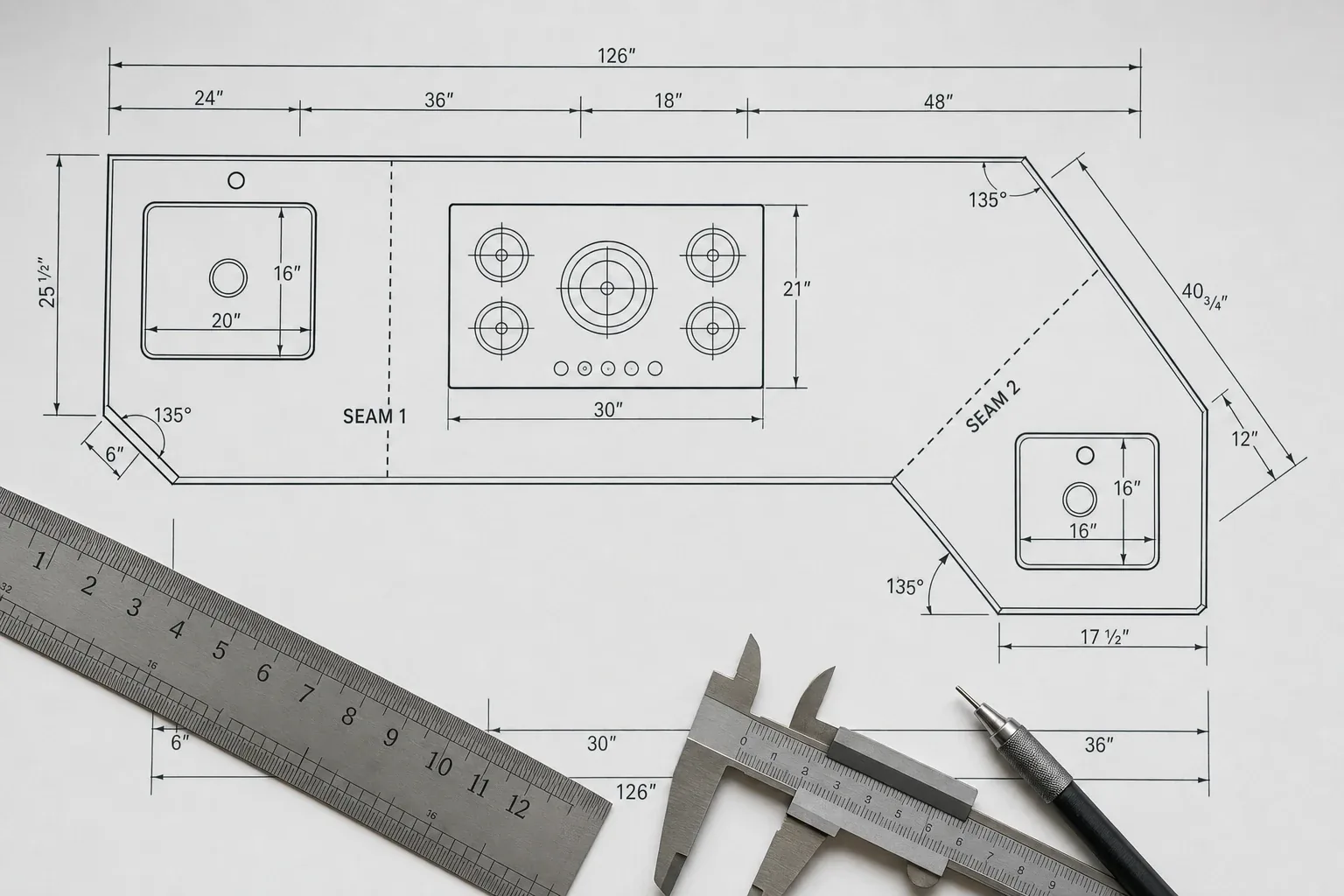

Seams & stone layout
Piece sizes, seam locations, movement, and installation access are considered as one coordinated decision.
03

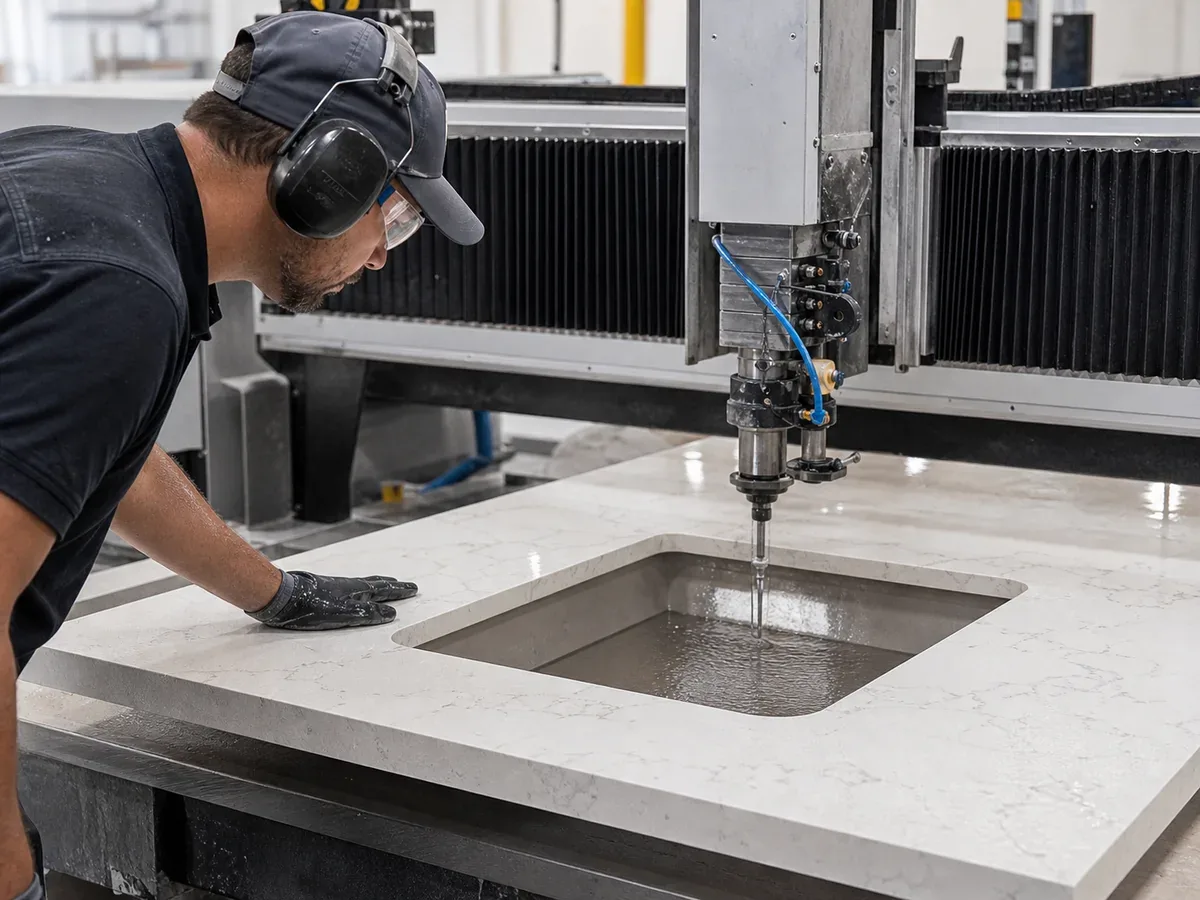

Cutouts & fixtures
Sinks, cooktops, faucets, outlets, and accessories are located against approved specifications.
04
Edges & overhangs
Edge profiles, build-ups, support conditions, backsplashes, and overhangs are documented before production.
Professional by design
Technology supports accountability.
CAD does more than improve dimensional accuracy. It creates a clear checkpoint where assumptions can be questioned, project requirements can be confirmed, and the full team can work from the same information.
- Dedicated CAD oversight
- Digital field-to-shop workflow
- Specification-based review
- Fabrication-ready documentation
